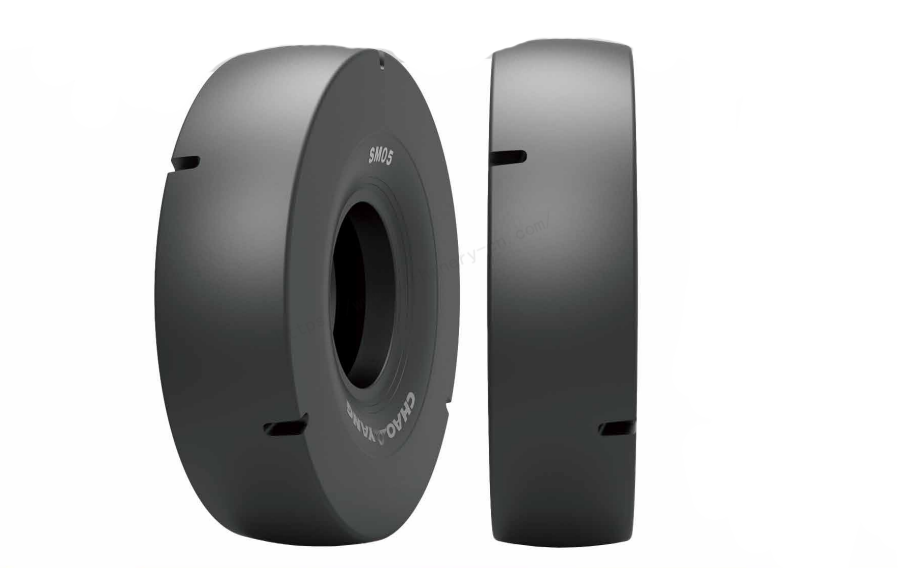

CHAOYANG Bald tyres SM05
- For the special products of underground mining professional equipment car, the patterm depth adoptsL-5, good wear resistance, high tire side strength,suitable forlow-speed use, no drum, no air leakage.
- The pattern adopts full smooth design to reducethe damage of the underground stone to the tireand improve the service life of the tire.
描述
| Pattern | Size | Star Rating | TRA Code or Application | Type | OTD(mm) | STANDARD RIM | Load | Approximate Inflated Dimensions(mm) | Pressure | |
| SW | OD | |||||||||
| SM05 | 10.00-20 | 14 | L-5S | TT | / | 7.50 | 4695 | 278 | 1055 | 690 |
| 12.00-24 | 20 | L-5S | TT/TL | / | 8.50 | 6900 | 315 | 1275 | 825 | |
| 24 | L-5S | TT/TL | / | 8.50 | 7500 | 315 | 1275 | 975 | ||
| 14.00-24 | 28 | L-5S | TT/TL | 65.0 | 10.00 | 10000 | 375 | 1370 | 925 | |
| 17.5-25 | 24 | L-5S | TT/TL | 68.0 | 14.00/1.5 | 9250 | 445 | 1400 | 700 | |
| 28 | L-5S | TT/TL | 68.0 | 14.00/1.5 | 10300 | 445 | 1400 | 840 | ||
| 18.00-25 | 32 | L-5S | TL | 90.0 | 13.00/2.5 | 15000 | 500 | 1675 | 750 | |
| 20.5-25 | 24 | L-5S | TL | 79.0 | 17.00/2.0 | 10300 | 520 | 1550 | 525 | |
| 26.5-25 | 36 | L-5S | TL | 96.0 | 22.00/3.0 | 18300 | 675 | 1800 | 625 | |
