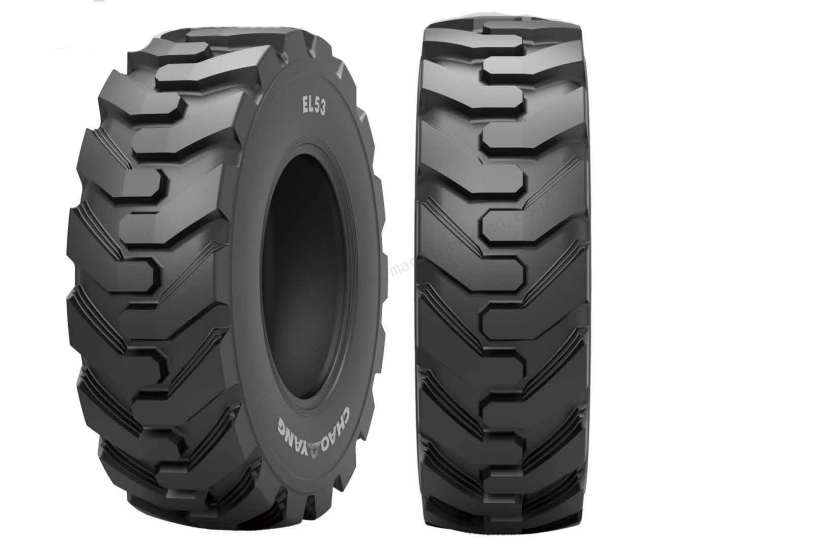

CHAOYANG Mini excavator tyres EL53
- Suitable for small excavators with traction performance and skid resistance.
- Suitable for construction,municipal construction soil mining operations and other environments.
Description
| Pattern | Size | Star Rating | Type | TRA Code | OTD(mm) | STANDARD RIM | Approximate Inflated Dimensions(mm) | Load | Pressure | |
| SW | OD | kg | kPa | |||||||
| EL53 | 16.9-24 | 12 | TL | R-4 | 33.00 | W15L | 429 | 1310 | 3250 | 260 |
| 14 | TL | R-4 | 33.00 | W15L | 429 | 1310 | 3250 | 260 | ||
| 16/70-24 | 14 | TL | R-4 | 28.00 | 13(SDC) | 455 | 1220 | 5600 | 450 | |
| 16 | TL | R-4 | 28.00 | 13(SDC) | 455 | 1220 | 6200 | 550 | ||
| 10.5/80-18 | 10 | TL | I-3 | 26.00 | 9 | 274 | 905 | 1935 | 370 | |
| 12 | TT | I-3 | 26.00 | 9 | 274 | 905 | 1350 | 370 | ||
| 12.5/80-18 | 12 | TT | I-3 | 26.00 | 9 | 308 | 985 | 2625 | 370 | |
| 14 | TT | 26.00 | 9 | 308 | 985 | 2910 | 430 | |||
