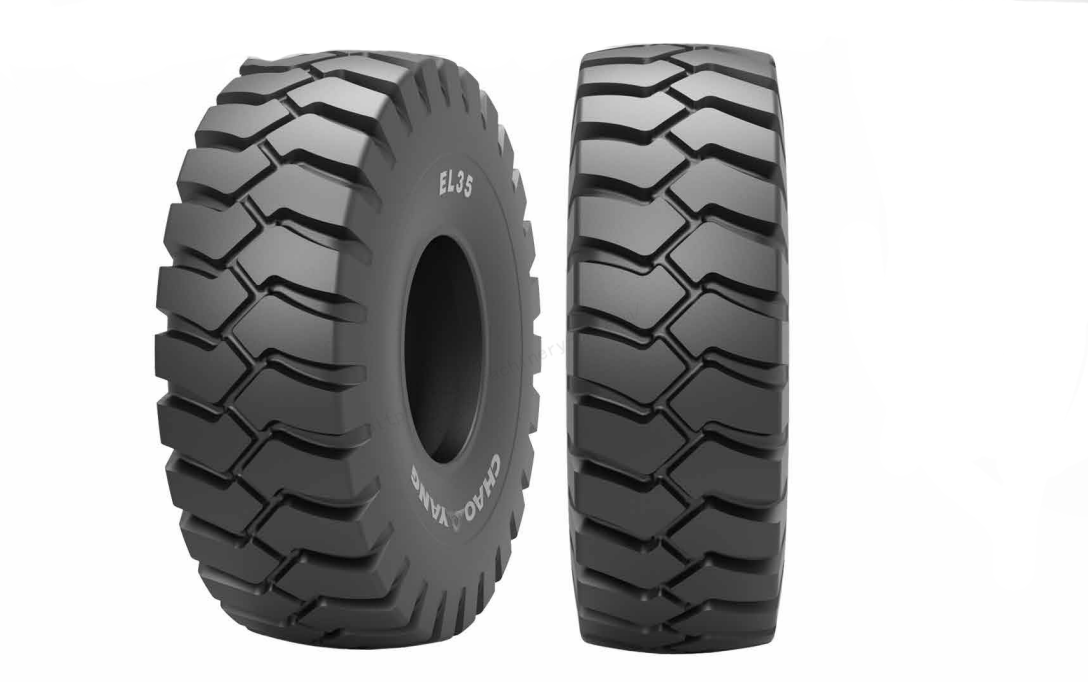

CHAOYANG Heavy duty tyres EL35
- For the design of mining dump truck, the construction machinery tire block deepening pattern product (E4),the pattern block is particularly wear-resistant,anti-skid performance is good.
- Excellent driving performance. Unique anti-pattern groove crack design, novel and beautiful appearance,anti-gravel, strong, small bending, low heat generation, good support performance.
- Suitable for scraper and heavy dump truck,suitable for mining areas, tunnels, quarrie sand construction sites and other roadconditions of low speed operation.
描述
| Pattern | Size | Star Rating | TRA Code | Type | OTD(mm) | STANDARD RIM | Approximate Inflated Dimensions(mm) | Load | Pressure | |
| SW | OD | kg | kPa | |||||||
| EL35 | 16.00-25 | 32 | E-3 | TT | 38.0 | 11.25/2.0 | 430 | 1495 | 7300 | 650 |
| 18.00-25 | 32 | E-4 | TT/TL | 55.0 | 13.00/2.5 | 500 | 1675 | 8750 | 575 | |
| 36 | E-4 | TT/TL | 55.0 | 13.00/2.5 | 500 | 1675 | 9250 | 625 | ||
| 18.00-33 | 32 | E-4 | TL | 52.0 | 13.00/2.5 | 500 | 1875 | 10000 | 575 | |
| 21.00-33 | 32 | E-3 | TL | 46.0 | 15.00/3.0 | 570 | 1940 | 10300 | 500 | |
| 21.00-35 | 36 | E-4 | TL | 51.0 | 15.00/3.0 | 570 | 2005 | 12850 | 550 | |
| 40 | E-4 | TL | 51.0 | 15.00/3.0 | 570 | 2005 | 14000 | 625 | ||
| 24.00-35 | 42 | E-4 | TL | 55.0 | 17.00/3.5 | 655 | 2175 | 16500 | 550 | |
| 18500 | 650 | |||||||||
