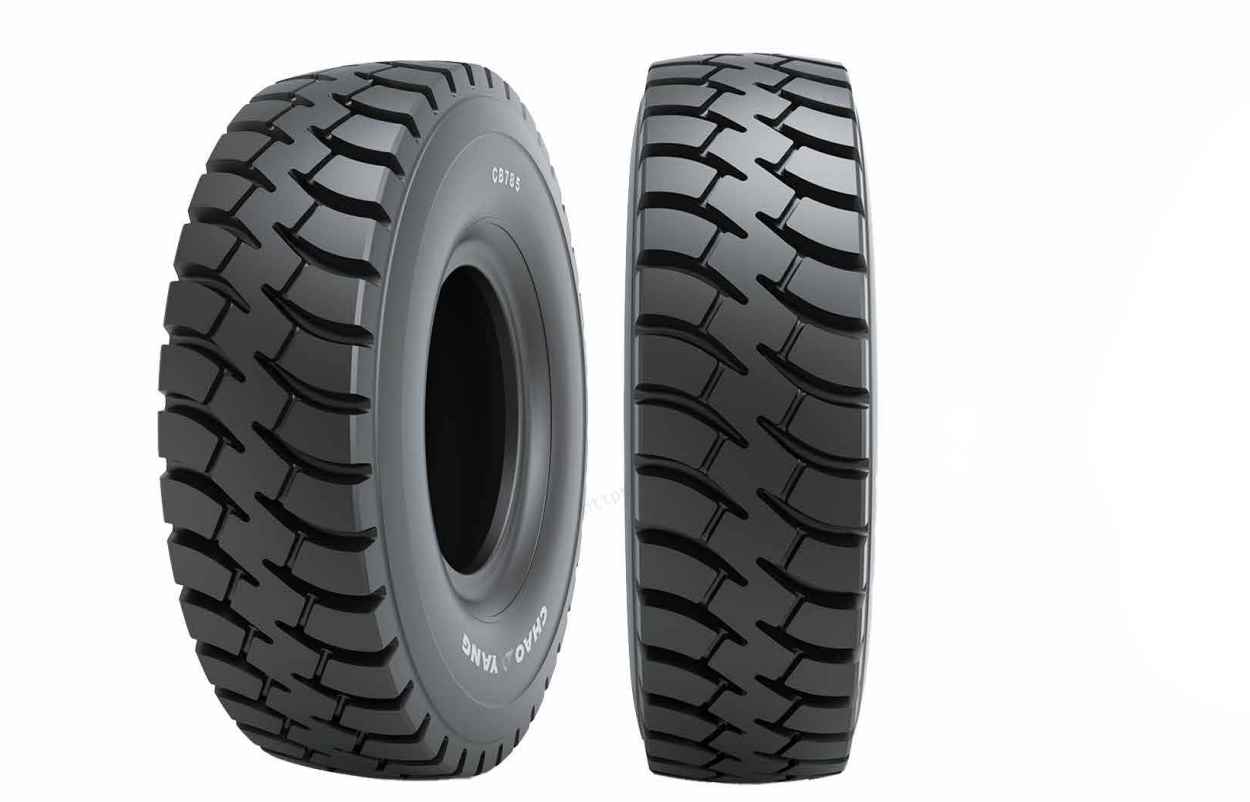

CHAOYANG Loader tyres CB785
- The unique tread pattern design ensures the excellent traction of the tire, and the advanced production process creates reliable product quality.
- High strength special steel wire skeleton material is used to optimize the design of E4 tread pattern,optimize and adjust to enhance the stability,smoothness and service life of the tire.
- It provides 5 different formula options such as cutting resistance and heat resistance, suitable for the use of dump trucks under different working conditions, and enhances the tire side design to improve stability and puncture resistance.
Description
| Pattern | Size | Star Rating | TRA Code | Type | OTD(mm) | STANDARD RIM | Load index | Approximate Inflated Dimensions(mm) | Load | Pressure | |||
| SW | OD | kg | LBS | kPa | PSI | ||||||||
| CB785 | 27.00R49 | ★★ | E-4 | TL | 70.0 | 19.50/4.0 | 223B | 735 | 2700 | 27250 | 60000 | 700 | 102 |
| 30.00R51 | ★★ | E-4 | TL | 77.0 | 22.00/4.5 | 230B | 825 | 2887 | 33500 | 74000 | 700 | 102 | |
| 33.00R51 | ★★ | E-4 | TL | 95.0 | 24.00/5.0 | 235B | 985 | 3060 | 38750 | 95500 | 700 | 102 | |
| 36.00R51 | ★★ | E-4 | TL | 85.0 | 26.00/5.0 | 241B | 979 | 3190 | 46250 | 102000 | 700 | 102 | |
| 40.00R57 | ★★ | E-4 | TL | 98.0 | 29.00/6.0 | 250B | 1095 | 3595 | 60000 | 132500 | 700 | 102 | |
